Die Casting Tolerance Specification Guide

Which tolerances to specify on a die casting drawing, typical as-cast and machined values, and how datum strategy affects inspection.

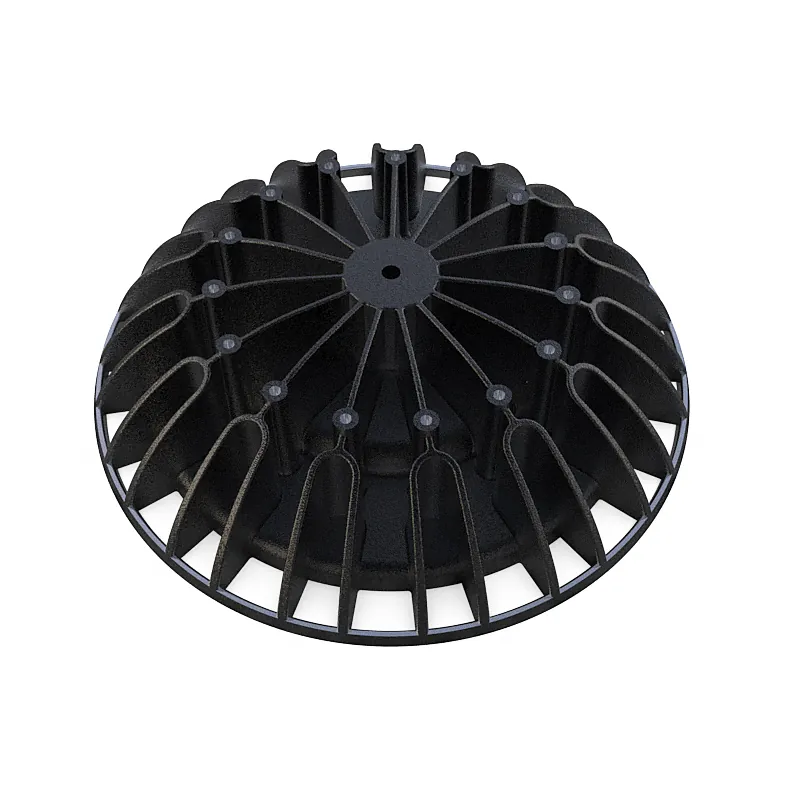

Die casting tolerance review Die casting tolerance review
Audience
Buyers and engineers
Focus
Practical decisions
Next
DFM review
Output
Actionable checklist
01 / Guide

As-cast versus machined tolerances

As-cast tolerances apply to surfaces formed directly by the die. They depend on part size, alloy, wall design, tool condition and process control, so they should not be copied from a generic table without review.

Machined tolerances apply to features produced after casting. Because the feature is cut rather than formed, the achievable tolerance is usually tighter, but it depends on the datum and fixturing strategy.

  • As-cast values reflect the casting process
  • Machined values reflect the cutting process
  • Both depend on the datum strategy
  • Confirm against the drawing during DFM
02 / Guide

Typical values for planning

As a planning reference for this factory, as-cast features are typically quoted around ±0.05 mm and machined features around ±0.01 mm, with the final value confirmed against the drawing and feature.

Large dimensions, multiple datum references and thin walls all reduce the achievable tolerance. Critical features should be identified on the drawing so they can be reviewed first.

  • As-cast: typically around ±0.05 mm
  • Machined: typically around ±0.01 mm
  • Large dimensions need wider tolerance
  • Mark critical features on the drawing
03 / Guide

Building a workable datum strategy

A datum strategy should connect the casting, the machining setup and the inspection method. If the casting datum and the machining datum are unrelated, bore position and flatness become difficult to control.

Where possible, use stable features such as a machined face or a defined boss pattern as the primary datum, and keep the critical features on the same chain.

  • Use stable features as datums
  • Keep a single datum chain
  • Align casting, machining and inspection
  • Document the datum plan
04 / Guide

Inspection and documentation

The drawing should state which dimensions are inspected, at what frequency and with which method. That information drives the inspection plan and the records supplied with production.

Typical documents can include dimensional reports, material records, first-article documents and project-specific PPAP files, as agreed in the quotation or quality agreement.

  • State inspection scope on the drawing
  • Agree sampling and methods
  • Define the required records
  • Keep records traceable to the lot
Buyer questions

Questions to resolve before production.

These answers define the normal project path and the information needed for a useful quotation.

Provide the controlled 2D/3D drawing, material requirement, annual quantity, finishing requirement, critical dimensions, target market and delivery date.

An initial feasibility discussion is possible, but the quotation and tooling scope should be based on a controlled drawing revision.

Tolerance and inspection requirements are defined from the drawing, critical features, process capability and agreed datum strategy.
