Medical Equipment Die Casting for production-ready components

Housings, brackets and equipment parts for non-implant applications, subject to the customer's quality, cleaning and traceability requirements.

Upload a drawing Review DFM process

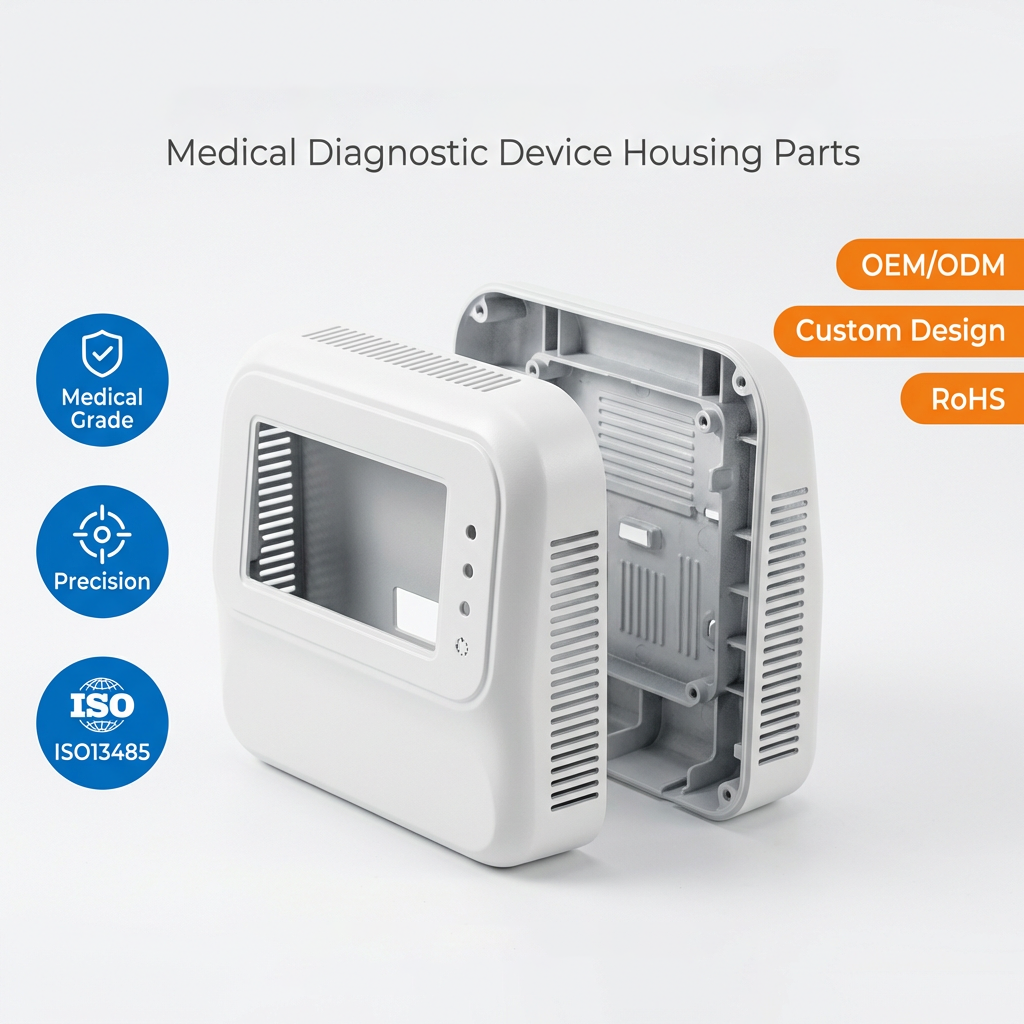

Medical and diagnostic equipment component planning

Part-led: Application review
Material fit: Al / Zn / Mg options
DFM: Manufacturability review
Inspection: Documented release

01 / Industry

Medical and diagnostic equipment project requirements

Housings, brackets and equipment parts for non-implant applications, subject to the customer's quality, cleaning and traceability requirements.

Each project should answer both commercial and engineering questions: how the part will be produced, how it will be inspected, how the program will be released and what evidence is needed for the target market.

Equipment housings
Support arms and brackets
Control enclosures
Non-implant components

Technical profile

Medical and diagnostic equipment planning profile

Use this table for project planning, then confirm every critical value against the approved drawing and process plan.

Typical parts	Equipment housings, Support arms and brackets, Control enclosures, Non-implant components
Recommended materials	ADC12, A380, AlSi10Mg
Primary process	High-pressure die casting with secondary operations
Critical focus	Drawing-specific: dimensional, sealing, thermal, shielding or structural requirement
Quality documents	Defined by customer and application requirements
Quality system	ISO 9001 and IATF 16949 certified factory

Component requirements differ by program. Inspection scope, documentation and any customer-specific approval are confirmed for each project.

Project flow

Industry project path

Each stage produces a decision or document that the next stage depends on. This keeps engineering, purchasing and production aligned.

Application review

Confirm the operating environment, target market, assembly requirement and commercial volume.

Design review

Check material, geometry, sealing, thermal behavior and secondary operations.

Process validation

Approve the tooling, sample, machining and finishing plan before volume release.

Program documentation

Define the inspection plan, traceability and release documents required by the project.

Buyer questions

Questions to resolve before production.

These answers define the normal project path and the information needed for a useful quotation.

What information is needed for a medical equipment die casting review?

Provide the controlled 2D/3D drawing, material requirement, annual quantity, finishing requirement, critical dimensions, target market and delivery date.

Can the project start from a sample or concept?

An initial feasibility discussion is possible, but the quotation and tooling scope should be based on a controlled drawing revision.

How are tolerances set?

Tolerance and inspection requirements are defined from the drawing, critical features, process capability and agreed datum strategy.

How is tooling ownership handled?

Ownership, storage, maintenance and transfer terms are defined in the quotation or supply agreement before the tooling project starts.

Continue through the project path.

Use the internal links to connect the material, process, industry, product and RFQ pages around one project decision.

Send the drawing. Get the engineering questions first.

Include the material, annual quantity, finishing requirement, target market and delivery date. The review can start from STEP, IGS, DWG, DXF, PDF or ZIP files.
