Die Casting Surface Finishing Options

Finishing is an engineering choice, not only a cosmetic one. Corrosion protection, electrical behavior, wear, appearance and dimensional change all depend on the finish selected.

The right starting point is the end-use environment and the function of the surface: is it decorative, protective, conductive, masking-sensitive or a sealing interface?

• Start from the environment and function
• Consider corrosion and wear
• Check conductivity requirements
• Define cosmetic zones early

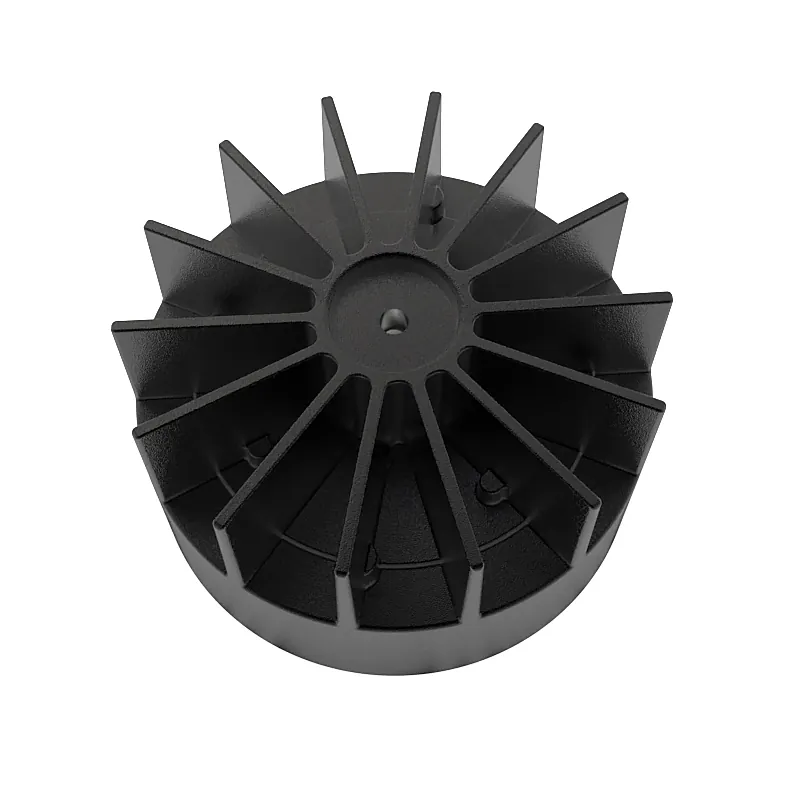

Aluminum die castings commonly use powder coating, painting, e-coating, chromate or conversion coating, and mechanical finishes such as polishing or brushing. Anodizing is sometimes requested but needs careful review because of alloy composition.

Each process has a preparation sequence, a coating thickness and a masking requirement. Those details should be agreed before the drawing is released for production.

• Powder coating and painting
• E-coating and conversion coating
• Mechanical polishing and brushing
• Review anodizing against the alloy

Zinc die castings accept plating well, which makes them common in hardware, locks and fittings. Painting and powder coating are also widely used.

Plating and coating build up on the surface, so threads, bores, mating faces and appearance-critical areas need a masking plan and a clear inspection standard.

• Plating is common for zinc castings
• Painting and powder coating are also used
• Plan masking for threads and bores
• Define the appearance standard

Coating thickness affects dimensions. For tight features, the finish build-up should be included in the tolerance stack-up rather than treated as a cosmetic detail.

Inspection should use the agreed method, lighting and limit samples. Color, gloss, texture and coverage are easier to control when the acceptance criteria are written down.

• Include build-up in the tolerance stack
• Agree the masking plan
• Define lighting and limit samples
• Record inspection results
