Die Casting Draft Angle and Parting Line

How draft angle and parting line choice affect ejection, tool life, cosmetic zones and secondary machining in aluminum and zinc die casting.

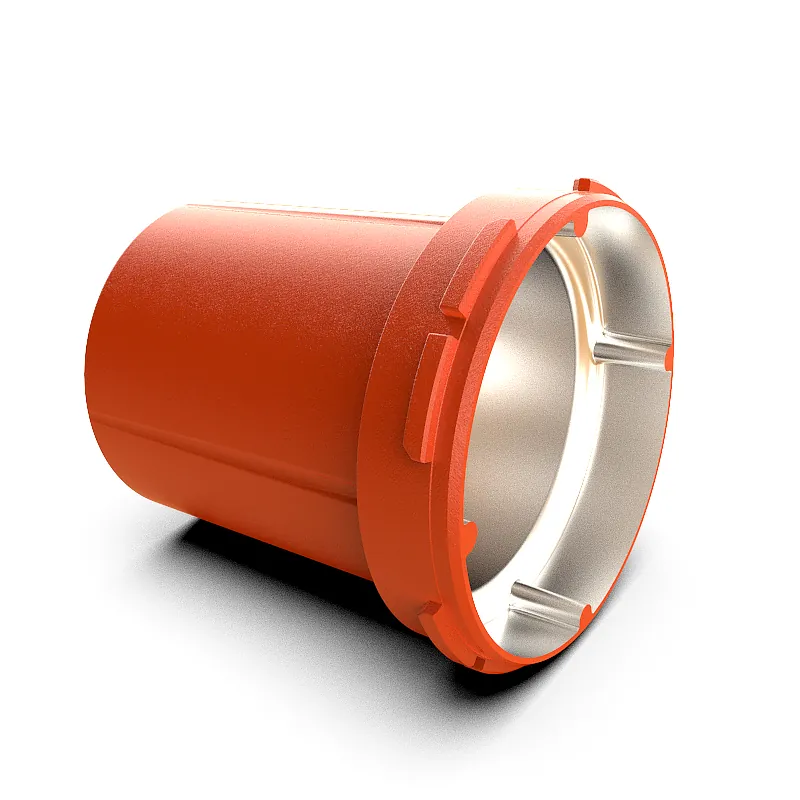

Draft angle and parting line review Draft angle and parting line review
Audience
Buyers and engineers
Focus
Practical decisions
Next
DFM review
Output
Actionable checklist
01 / Guide

What draft angle actually does

Draft angle is the taper applied to walls that run in the direction of die opening. It allows the casting to leave the die without dragging, scoring or cracking the part.

The amount of draft needed depends on wall depth, surface texture and the alloy. Deep walls and textured surfaces need more draft because the contact area and friction are higher.

  • Draft allows clean ejection from the die
  • Deep walls need more draft
  • Textured surfaces need more draft
  • Insufficient draft shows up as drag marks and tool wear
02 / Guide

Typical draft values

For many aluminum die casting features, 1° to 2° of draft is a practical starting point. Short features can sometimes use less, while deep bores, ribs and textured faces generally need more.

Zinc alloys often reproduce fine detail with slightly lower draft on short features, but the same principle applies: the deeper the feature, the more draft it needs.

  • 1–2°: common starting range for aluminum
  • 0.5°: possible on short, smooth features
  • 3° or more: deep walls and heavy texture
  • Confirm values feature by feature
03 / Guide

Choosing the parting line

The parting line decides where flash appears and which faces can be formed in one half of the tool. It should be placed on a surface where flash is acceptable or can be removed without damaging a cosmetic area.

If a feature cannot be formed in the direction of die opening, a slide or side core is required. That adds tooling cost and maintenance, so it should be a deliberate design decision.

  • Place the parting line away from cosmetic faces
  • Plan for flash removal
  • Avoid unnecessary side cores
  • Document the accepted parting line direction
04 / Guide

Draft, texture and deep features

Texture, anodizing, powder coating and polishing all interact with draft. A textured surface increases friction during ejection and may need an extra degree of draft or a change in texture depth.

Deep ribs, bosses and pockets should be reviewed together with draft and filling. A feature that is easy to draw may still be difficult to fill, vent or eject in volume production.

  • Texture increases the required draft
  • Review deep features for filling and venting
  • Plan polishing and coating before tooling
  • Lock the values into the controlled drawing
Buyer questions

Questions to resolve before production.

These answers define the normal project path and the information needed for a useful quotation.

Provide the controlled 2D/3D drawing, material requirement, annual quantity, finishing requirement, critical dimensions, target market and delivery date.

An initial feasibility discussion is possible, but the quotation and tooling scope should be based on a controlled drawing revision.

Tolerance and inspection requirements are defined from the drawing, critical features, process capability and agreed datum strategy.

Ownership, storage, maintenance and transfer terms are defined in the quotation or supply agreement before the tooling project starts.
