Prototype Options Before Die Casting Tooling

A prototype validates fit, function, assembly and sometimes the manufacturing concept before a production tool is cut. It reduces the risk of an expensive tool change later.

The prototype route should match the question being answered. A cosmetic review, a fit check and a pressure test do not all need the same process.

• Prototypes reduce tooling risk
• Match the route to the question
• Not every check needs a casting
• Confirm the drawing before tooling

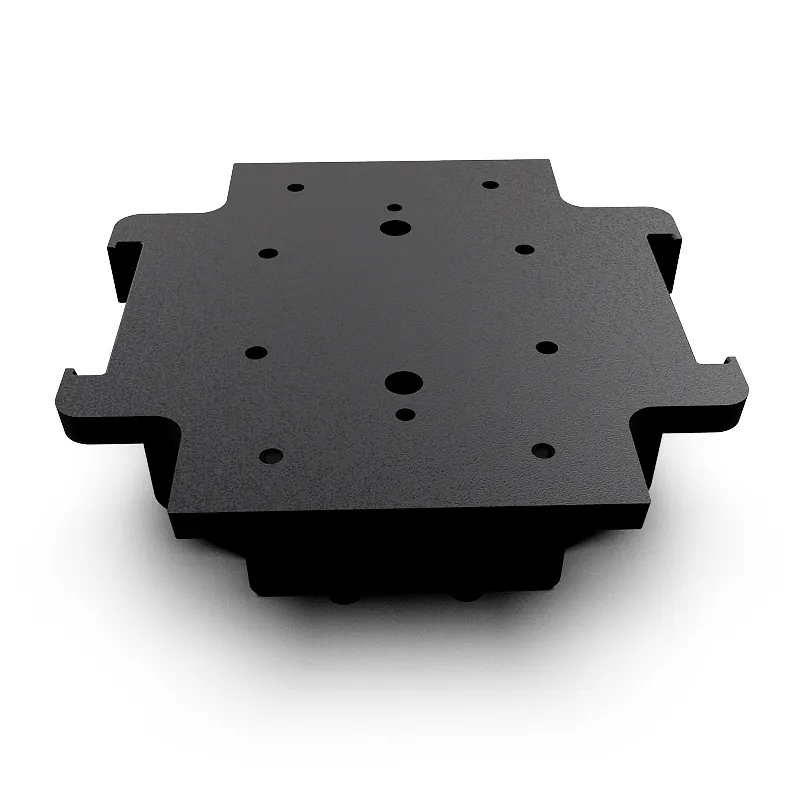

CNC machining from billet or plate is common for fit and function checks, especially for small quantities and tight tolerances. It can also produce a representative surface finish.

3D printing is fast and useful for form and assembly studies, but the material properties and surface are not representative of a die casting.

• CNC gives good dimensional accuracy
• Printing is fast for form checks
• Printed material is not equivalent
• Use the right method per question

Soft tooling and sand casting can produce castings in the target alloy for a fraction of the cost of a production die. They are useful for material, finishing and machining trials.

These routes do not reproduce production cycle time, porosity behavior or tooling details, so results should be interpreted with care.

• Soft tooling casts the real alloy
• Sand casting suits larger parts
• Not equivalent to production process
• Good for material and finish trials

A practical sequence is to validate geometry and fit with a fast prototype, then validate alloy, finishing and machining with a cast prototype if the project risk justifies it.

The decision should consider schedule, cost and the consequences of a design change after the production tool is cut.

• Validate geometry first
• Validate material and finish next
• Weigh cost against change risk
• Freeze the drawing before tooling
