Inserts and Overmolding in Die Casting

How threaded inserts, bushings and overmolded features are designed, placed and validated in a die casting project.

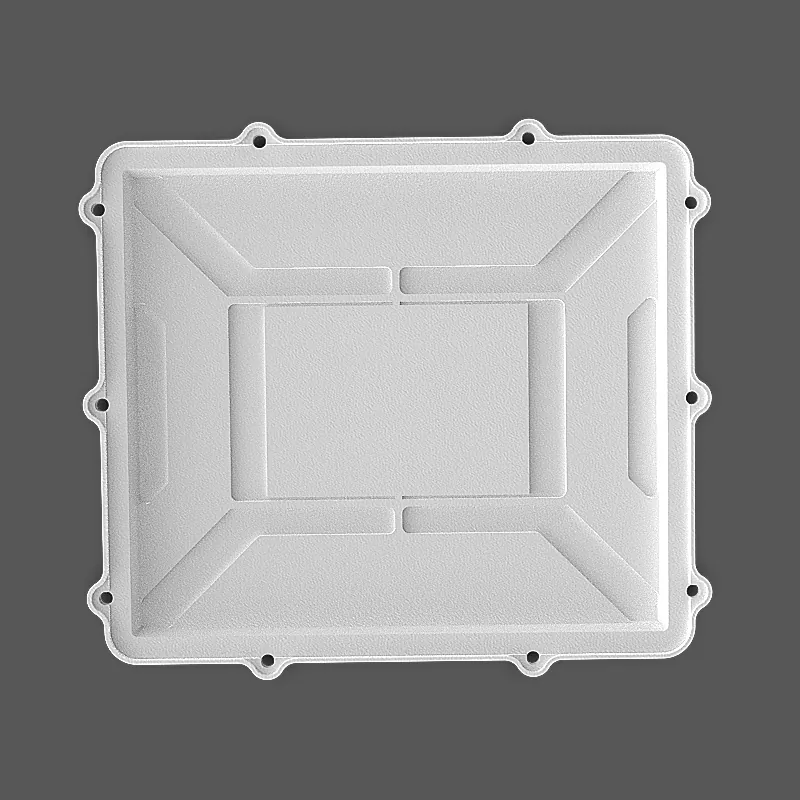

Insert and overmolding review Insert and overmolding review
Audience
Buyers and engineers
Focus
Practical decisions
Next
DFM review
Output
Actionable checklist
01 / Guide

When to use inserts

Inserts are used when a cast thread or bore cannot carry the required load, when a harder material is needed at a wear point, or when the assembly needs a repeatable threaded interface.

They can also simplify machining by providing a finished interface that would otherwise require a separate operation on every part.

  • Use inserts for higher load or wear
  • Cast threads have limits
  • Inserts can replace machining
  • Confirm the assembly requirement first
02 / Guide

Designing around inserts

The casting must provide enough wall around the insert to avoid porosity, cracking or distortion. The insert should be supported by a boss or pad rather than sitting at the edge of a thin wall.

Thermal expansion differences between the insert and the alloy should be considered, especially when the part will see temperature cycling in service.

  • Provide adequate wall around inserts
  • Support the insert with a boss
  • Consider thermal expansion
  • Avoid thin walls at the insert
03 / Guide

Placement and tooling

Insert placement in the die must be repeatable and must not interfere with filling, ejection or cooling. Poor placement is a common source of tool damage and scrap.

The tool design should define how the insert is held during the shot, how it is checked, and what happens if it is missing or misaligned.

  • Placement must be repeatable
  • Avoid interference with ejection
  • Define the holding method
  • Add checks for missing inserts
04 / Guide

Validation and inspection

Insert projects need a pull-out or torque check as part of the approval process, plus a visual check that the insert is correctly seated.

The inspection plan should state the sampling, the acceptance criteria and how a failed insert is handled in production.

  • Add pull-out or torque testing
  • Check seating visually
  • Define sampling and criteria
  • Document the reaction plan
Buyer questions

Questions to resolve before production.

These answers define the normal project path and the information needed for a useful quotation.

Provide the controlled 2D/3D drawing, material requirement, annual quantity, finishing requirement, critical dimensions, target market and delivery date.

An initial feasibility discussion is possible, but the quotation and tooling scope should be based on a controlled drawing revision.

Tolerance and inspection requirements are defined from the drawing, critical features, process capability and agreed datum strategy.

Ownership, storage, maintenance and transfer terms are defined in the quotation or supply agreement before the tooling project starts.
